In NDT radiography is one of the most important and widely used method. X-Ray radiography is an industrial radiography non-destructive technique which uses X-rays produced by X-ray generators to make an image or radiograph of material.
In general, radiography testing (RT) is method of inspecting materials for hidden flaws by using the ability of short-wave electromagnetic or high energy level radiation to penetrate various materials.

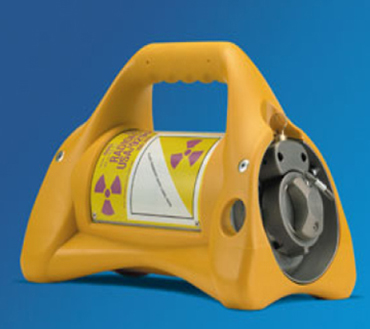

For industrial use, the two available radioactive sources are; X-Ray and Gamma-Ray. We strictly adhere and follow the local guidelines and rules while handing, mobilizing and during operation of radiography source.
The intensity of the radiation that penetrates and passes through the material is either capture by a radiation sensitive film (Radiography Film) or by radio sensitive sensors (Real-Time Radiography). Film radiography is oldest approach and most widely used in NDT.
Radiography is useful because it does not damage or change the item being tested. It can also be used when it is difficult or not practical to access the material being inspected.
For example, industrial radiography is used to test:

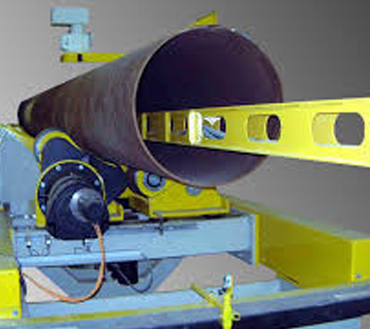

Industrial radiography works by pointing a beam of x-rays or gamma rays at the item being tested. A detector is lined up with the beam on the other side of the item. The detector records x-rays or gamma rays that pass through the material. The thicker the material, the fewer x-rays or gamma rays can pass through. Because the material is thinner where there is a crack or flaw, more rays pass through that area. The detector creates a picture from the rays that pass through, which shows cracks or flaws. The pictures from these cameras are called radiographs. Like photography, industrial radiography has been moving away from film-based radiography and instead moving to digital images.When you look at a radiograph of welded metal, the welding site shows up bright white because it is thicker than the rest of the pipe material. The welding stops the rays almost completely from passing through, which makes it show up brighter than the rest of the images. The cracks show up as darker areas because the radiation has passed completely through the cracks.X-ray and gamma ray industrial radiography devices are different and used for different purposes.

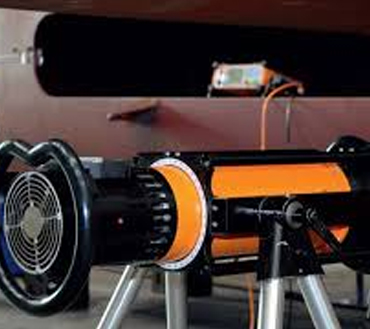

X-ray — a type of radiography — is a preferred NDT method due to its ability to clearly view through steel, nickel, aluminum, and other metals. X-ray can only be performed when access to both sides of the test material is available. NDT technicians transmit radiation through the object on one side, while a detector film records the differences in absorption on the other side. We then interpret the resulting X-ray images for signs of hidden flaws or defects within the metal such as cracks, voids, and corrosion in accordance with the relevant codes and standards. Periodic, thorough evaluations are essential for preventing minor flaws from growing into more serious problems. After testing, we provide clients with a detailed test report that highlights our findings. With X-ray, our technicians can test metallic materials leaving them unaltered and without any residual radiation. We make sure to follow all guidelines for radiation safety, including designating a restricted clearance area once testing is in progress.
